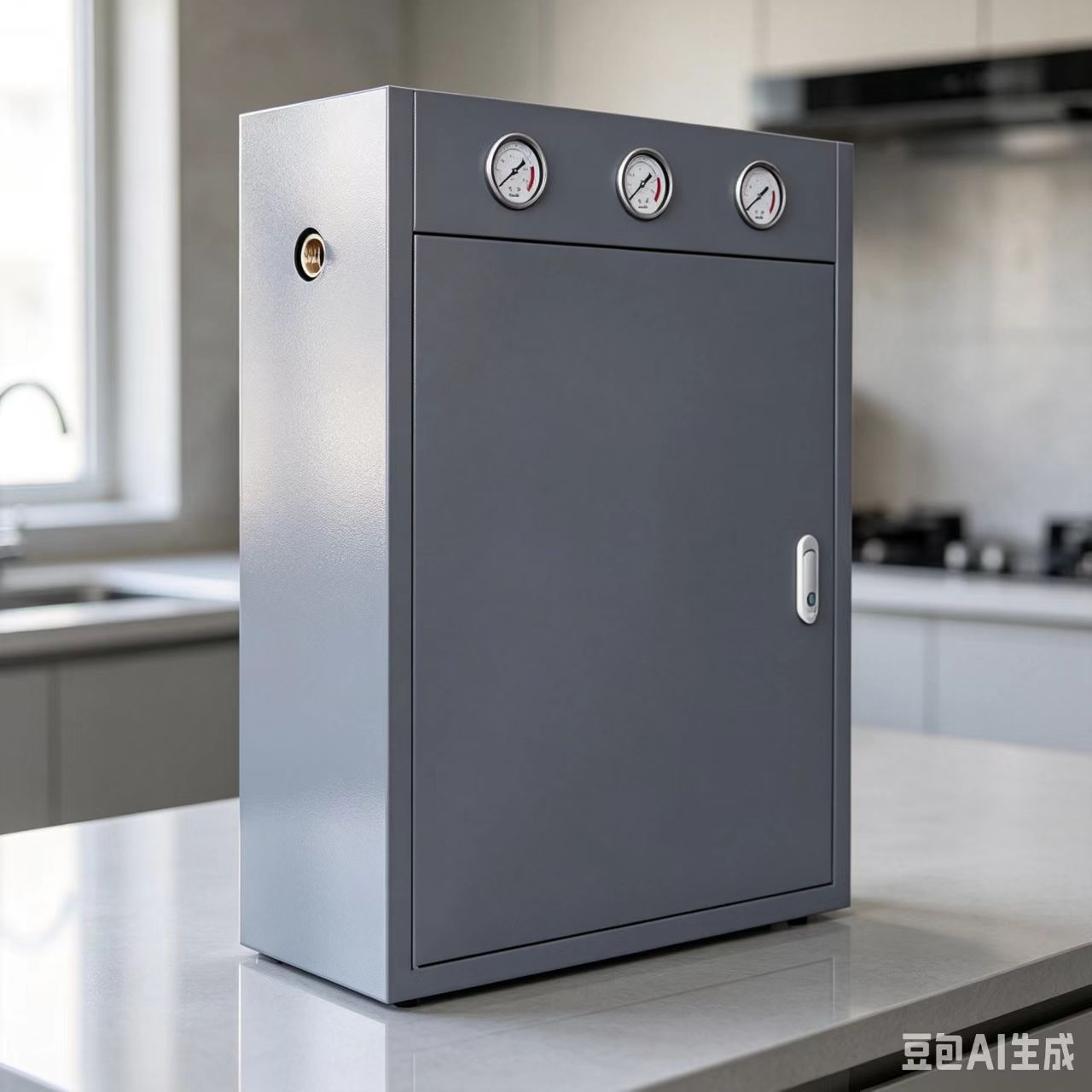

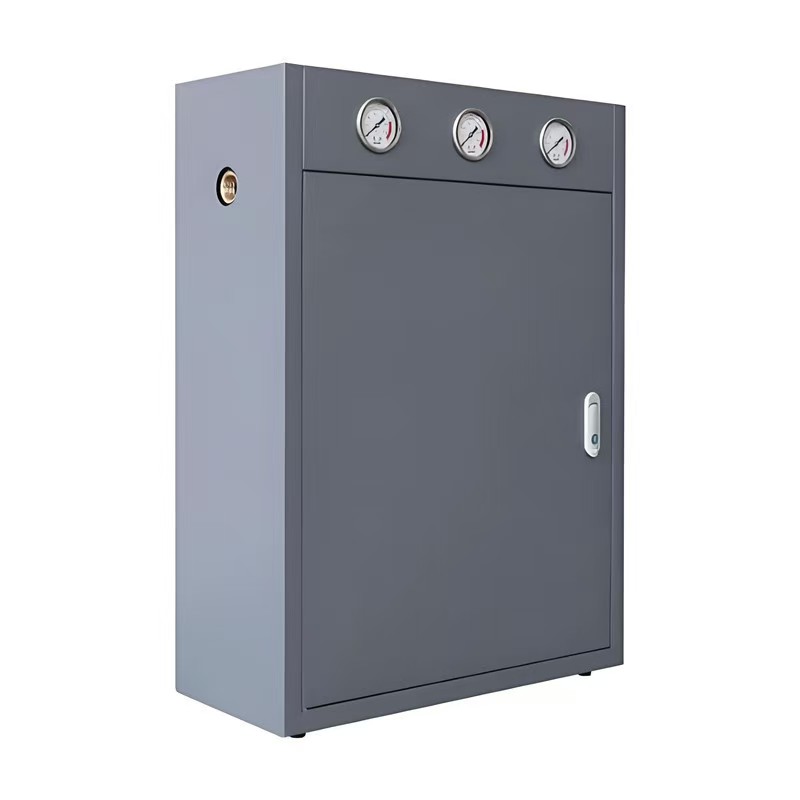

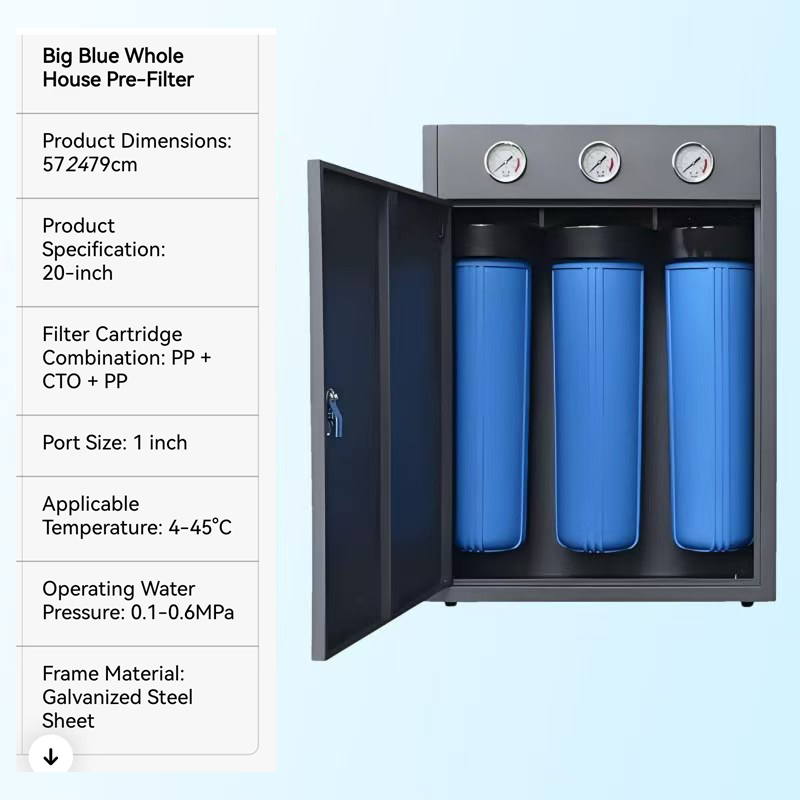

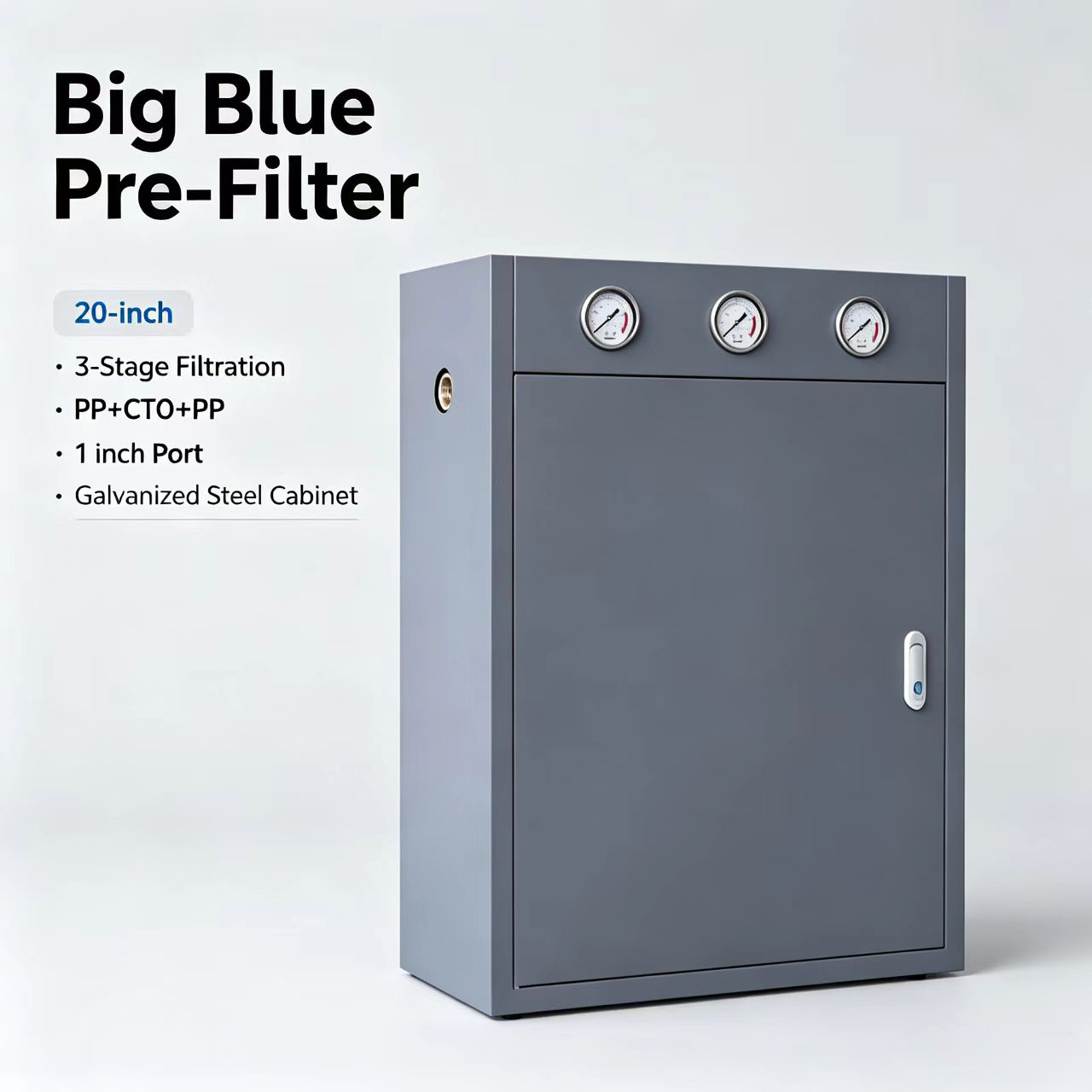

Overall Dimension: 57*24*79cm

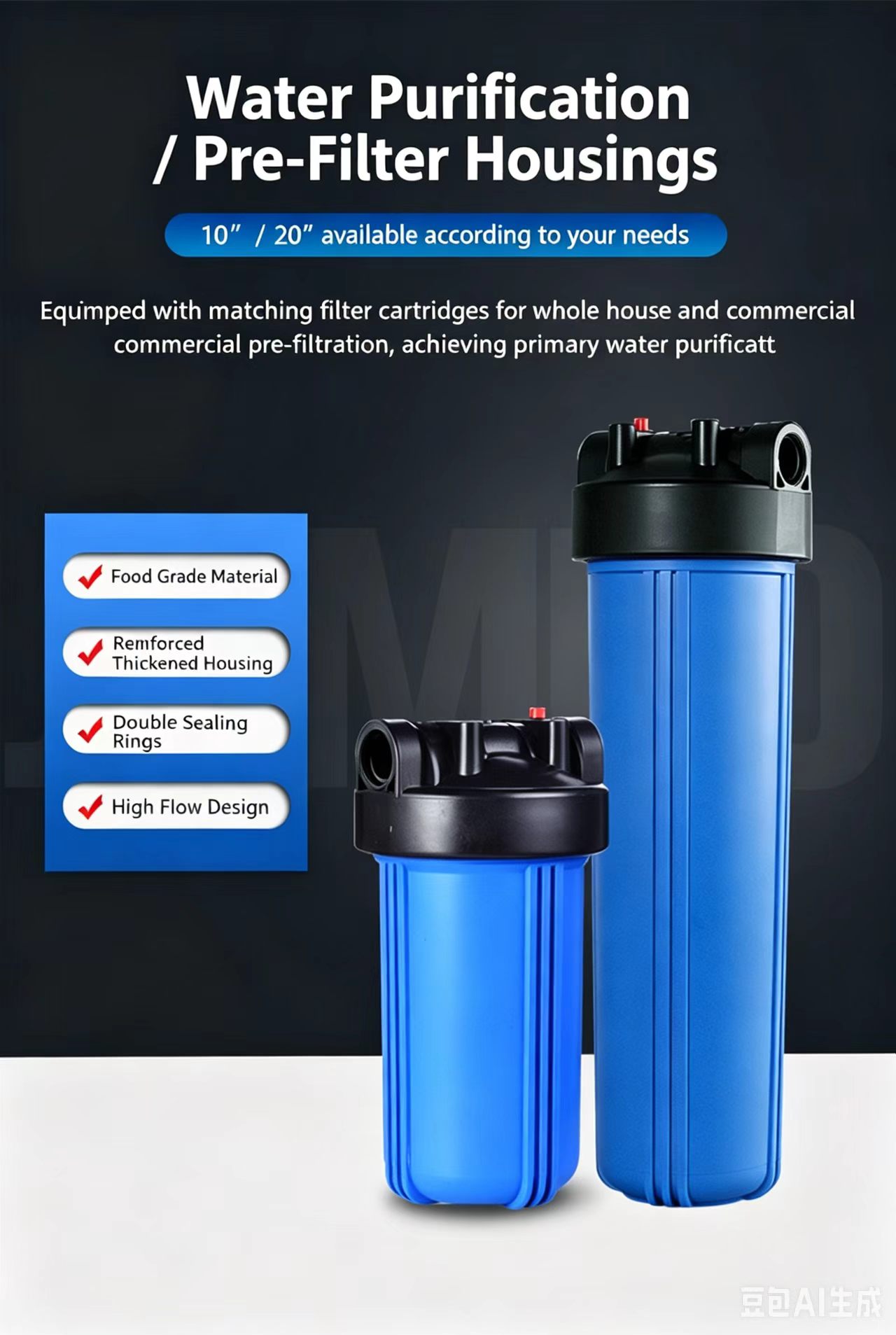

- Filter Cartridge Size: 20-inch Big Blue Filter Housing
- Cartridge Configuration: PP Sediment Filter + CTO Compressed Carbon Filter + PP Sediment Filter
- Port Size: 1 inch
- Operating Temperature Range: 4-45°C
- Working Water Pressure: 0.1-0.6MPa
- Cabinet Material: Galvanized Steel Sheet
- Extra Fittings: 3 pressure gauges to monitor water pressure of each filter stage and detect cartridge clogging timely
Filtration Principle
Three-stage cartridges deliver progressive water pre-treatment:
1. 1st Stage PP Sediment Filter: Captures large particles including sand, rust, insect eggs, hair and suspended solids for primary filtration, protecting subsequent filter elements.
2. 2nd Stage CTO Compressed Carbon Filter: Adsorbs residual chlorine, discoloration, peculiar odors and organic contaminants, while trapping fine impurities to improve water taste and cleanliness.
3. 3rd Stage PP Sediment Filter: Secondary precision filtration to intercept loose carbon powder and residual particles from previous stages, ensuring stable and clean water output.
Product Advantages & Application Scenarios
Core Advantages
1. Sealed galvanized steel cabinet shields filter housings and pipelines against collision and dust, extending service life and offering neat installation appearance.
2. 20-inch big blue filter cartridges feature high dirt holding capacity and high water flow rate, maintaining steady water pressure during peak water usage and lowering cartridge replacement frequency.
3. 1-inch large inlet/outlet supports high flow demand. Power-free, zero wastewater, easy to install and maintain.
Application Scenarios
Residential Use
Install on the main water supply pipe as whole-house pre-filter. It protects water heaters, washing machines, drinking water dispensers and all water-using appliances from blockage and abrasion caused by impurities.
Commercial Use
Suitable for bubble tea shops, restaurants, small hotels and office buildings for large-volume pre-treatment of tap water or well water.
